Product information

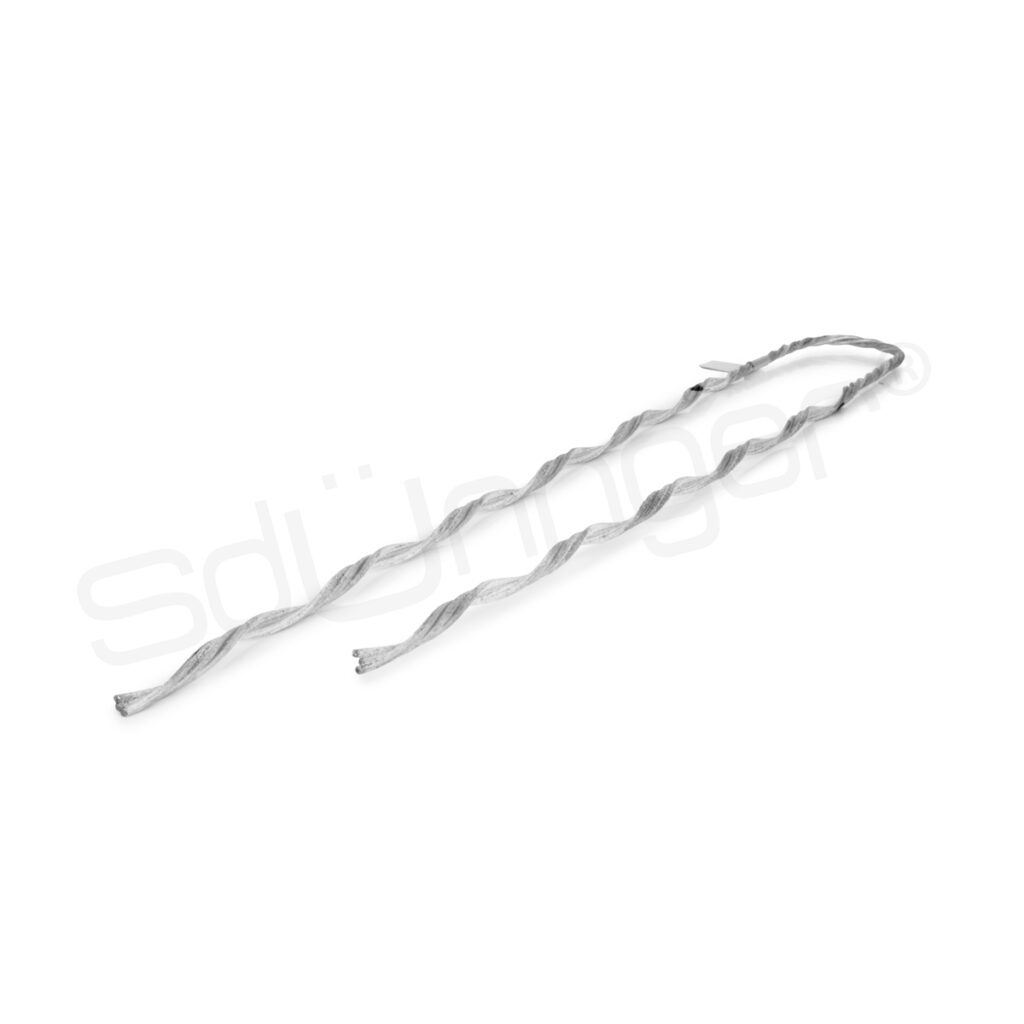

The Sdünnger SPIRAL S066-074 BLACK tension clamp is used for securing ADSS cables. It is used on wooden or concrete poles. It is an alternative to existing Sdünnger tension clamps. The clamp is made of ASTM A475 steel wire, additionally hot-dip galvanized.

The clamps can be mounted directly on the cable sheath, allowing installation without the need for additional tools.

Characteristic

The clamp is made entirely of high-quality ASTM A475 steel wire, making it resistant to tearing and stretching. Furthermore, this material is resistant to harmful weather conditions.

Sdünnger tension clamps comply with common standards for telecommunications cable network equipment, e.g., ZN-OPL-010/16

Files to download:

Declaration of Conformity

Application

Application:

  • telecommunications,
  • construction.

Mounting and related accessories

The tensioning brackets can be mounted to the following column brackets: Sdünnger CS100 column bracket

Sdünnger CS1500 column bracket

Sdünnger Cash column bracket

Sdünnger 6-hole cross bracket for concrete column

Installation method:

Detailed technical information

Supported cable size : 6.6-7.4 mm
Marking color : black
Minimum breaking load : 700 daN
Installation tension : 400 daN
Material : Steel wire, hot-dip galvanized
Mounting : Directly on the cable coat
