Product information

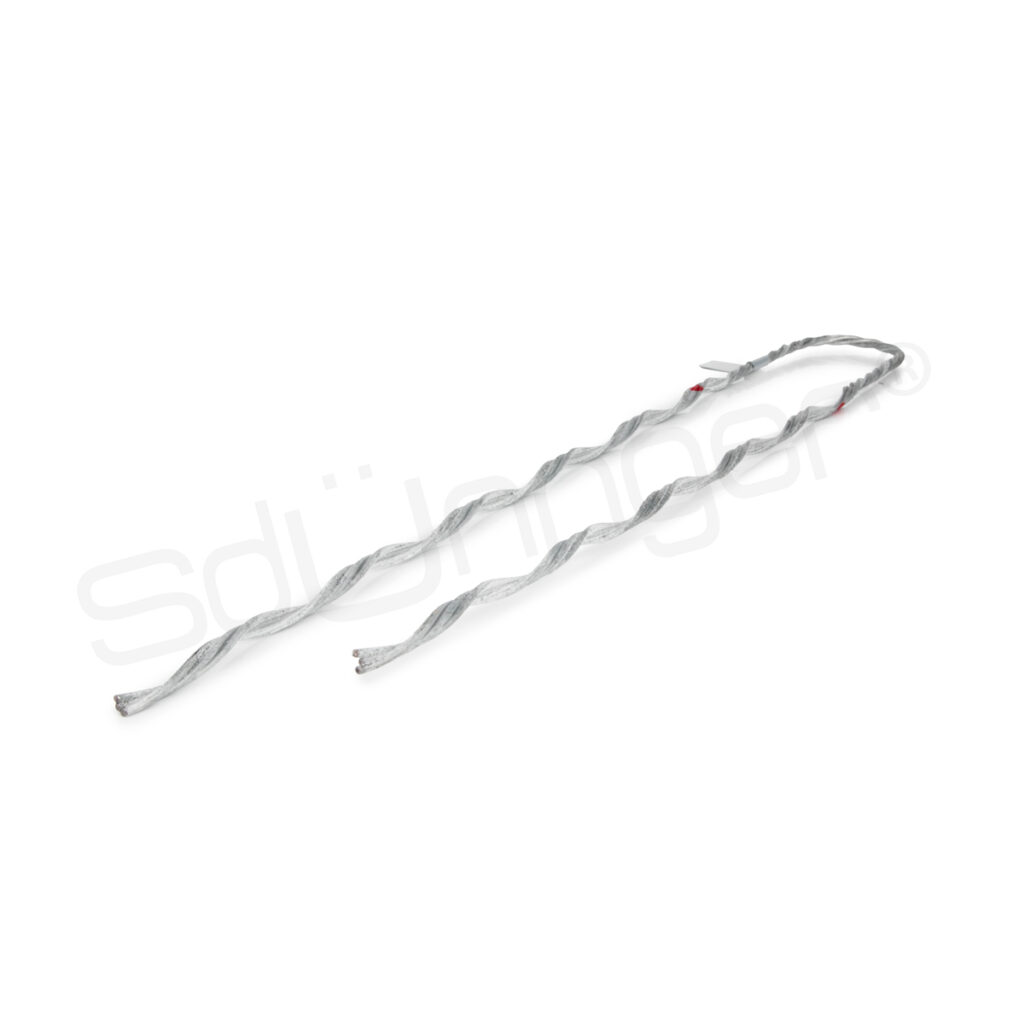

The Sdünnger SPIRAL S057-065 RED tension clamp is used for securing ADSS cables. It is used on wooden or concrete poles. It is an alternative to existing Sdünnger tension clamps. The clamp is made of ASTM A475 steel wire, additionally hot-dip galvanized.

The clamps can be mounted directly on the cable sheath, allowing installation without the need for additional tools.

Characteristic

The handle is made entirely of high-quality steel wire of the ASTM A475 standard, which makes it resistant to tearing and stretching, and this material is also resistant to harmful weather conditions.

Sdünnger tension clamps comply with common standards for accessories for telecommunications cable networks, e.g. ZN-OPL-010/16

Files to download:

Declaration of Conformity

Application

Application:

  • telecommunications,
  • construction.

Mounting and related accessories

The tensioning brackets can be mounted to the following column brackets:

Sdünnger CS100 column bracket

Sdünnger CS1500 column bracket

Sdünnger Cash column bracket

Sdünnger 6-hole cross bracket for concrete column

Installation method:

Detailed technical information

Supported cable size : 5.7-6.5 mm
Marking color : red
Minimum breaking strength : 700 daN
Installation tension: 400 daN
Material: Steel wire, hot-dip galvanized
Installation: Directly on the cable coat
