Product information

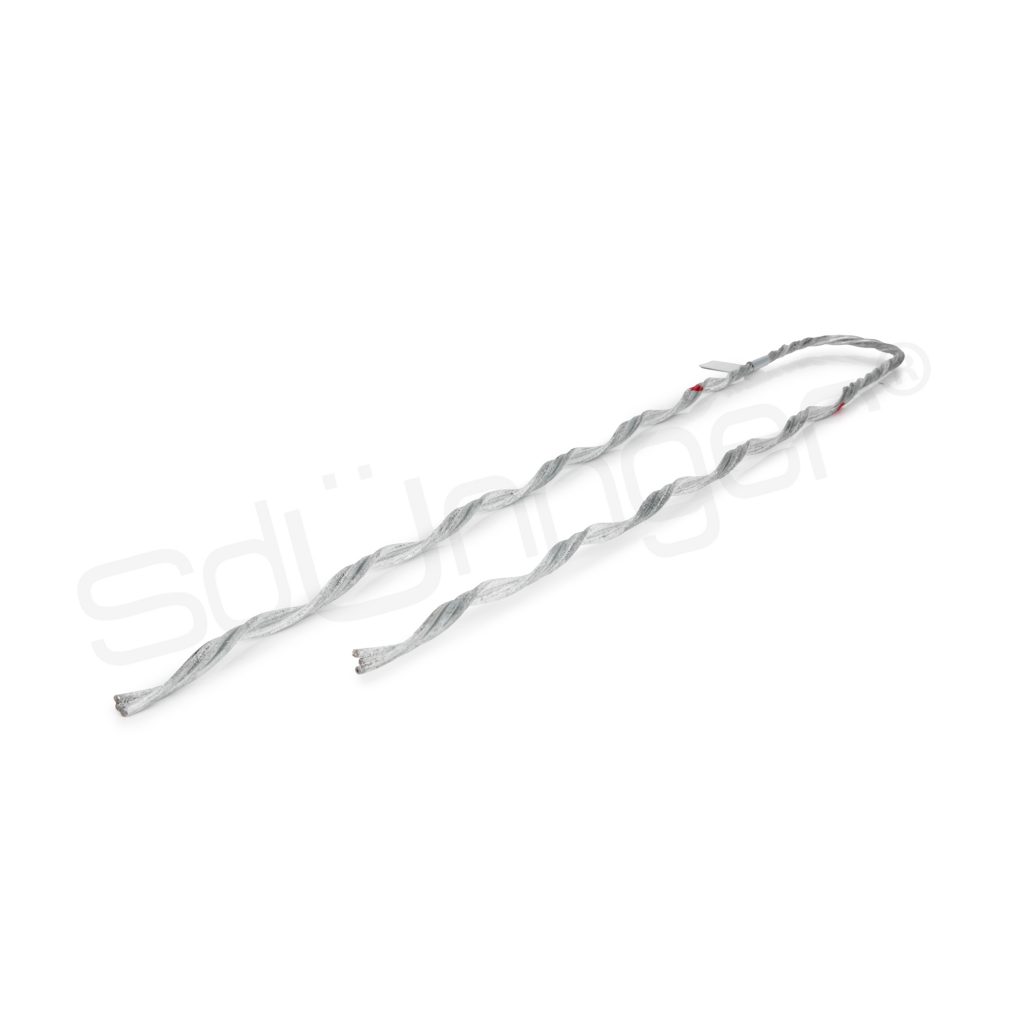

Anchoring cable clamp Sdünnger SPIRAL S050-056 RED – an element used in securing of ADSS type cables. Used on wooden or concrete poles. It is mounted with the help of its central eyelet. An alternative to previous Sdünnger anchoring cable clamps. The clamp is made of an ASTM A475 standard steel wire, which is additionally hot dip galvanized.

The clamps can be mounted directly over the cable coating. Their installation is possible without using additional tools.

Characteristic

The product is entirely made of a high quality - ASTM A475 standard compliant - steel wire, which makes it resistant to breaking and stretching. It is also resistant to harmful weather conditions.

Sdünnger suspension cable clamps are compliant with general norms that apply to telecom cable network equipment. i.e. ZN-OPL-010/16

Files to download:

Declaration of conformity

Appliance

Appliance:

  • telecommunications,
  • construction.

Detailed technical information

Supported cable size : 5.0-5.6 mm
Marking color : red
Minimum breaking strength : 700 daN
Installation tension : 400 daN
Material  : Steel wire, hot-dip galvanized
Installation : Directly on the cable coat
